A gas valve is one of the most important components in any furnace system. It controls the precise flow of fuel—whether natural gas or propane—into the burner assembly, ensuring that your heating system operates efficiently and safely. If the gas valve fails to function properly, your furnace could lose heating efficiency, waste energy, or in more severe cases, pose serious safety hazards such as gas leaks or incomplete combustion.
Regularly testing your furnace gas valve is a critical part of routine maintenance and troubleshooting. A well-functioning gas valve maintains the right balance between fuel delivery and ignition timing, while a faulty valve can disrupt this delicate process, leading to irregular heating cycles and even system shutdowns. For both homeowners and HVAC professionals, knowing how to test a gas valve on a furnace is an essential skill that not only helps in diagnosing heating issues but also ensures the longevity and safety of the equipment.
When your furnace is not delivering the warmth you expect, the gas valve is one of the first components to inspect. Recognizing the early warning signs can help you troubleshoot before the problem worsens.
A healthy gas valve regulates consistent fuel flow to the burner. If the valve is partially blocked, sticking, or failing to open fully, the burner flame may be noticeably smaller, unstable, or fail to ignite entirely. A weak flame can lead to uneven heating in your home, longer run times, and increased energy bills. In the worst-case scenario, no flame at all means your furnace is not producing heat, forcing you to rely on costly emergency heating solutions.
Another sign of a malfunctioning gas valve is inconsistent ignition. You may hear repeated clicking from the ignitor as it attempts to light the burner without success. Sometimes the furnace will ignite but then shut off prematurely, disrupting the heating cycle. These irregularities not only reduce efficiency but also put strain on other furnace components, such as the ignitor and control board. Over time, this can lead to more extensive—and expensive—repairs.
Working with gas systems requires strict adherence to safety protocols. Before performing any test or inspection on your furnace gas valve, you must take steps to protect yourself, your property, and your HVAC system.
Always begin by turning off the gas supply at the main shut-off valve. This prevents unintentional gas leaks during your inspection. Next, disconnect the furnace from its power source by switching off the breaker or unplugging the unit. Gas and electricity together can be a dangerous combination—eliminating both risks is the first rule of safe troubleshooting.
Even after shutting off the gas, residual fumes may remain in the system. Open windows and doors to allow fresh air to circulate through the area. Adequate ventilation minimizes the risk of inhaling gas fumes and reduces the chance of accidental ignition if a leak occurs during the test.
To properly test a gas valve on your furnace, you’ll need a few specialized tools. While some homeowners may have these in their toolkit, HVAC technicians often use professional-grade equipment for more accurate results.
Multimeter – Used to check for electrical continuity and voltage delivery to the gas valve.
Screwdriver – For removing furnace panels and securing electrical connections.
Leak Detector – A handheld gas leak detector or a soap-and-water solution to check for leaks after reassembly.
Having these tools ready before you begin will make the testing process smoother and safer.
Testing a furnace gas valve involves a combination of visual inspection and technical measurement to accurately diagnose potential issues. Performing these steps carefully can help determine whether the gas valve is functioning properly or needs repair or replacement. Below is a detailed guide on how to conduct these tests step-by-step.
Begin by carefully examining the gas valve’s exterior. This initial visual check can reveal obvious signs of wear or damage that may affect valve operation. Key points to inspect include:
Valve Body Condition: Look for any visible cracks, dents, or deformations on the valve housing. Even minor cracks can cause dangerous gas leaks.
Corrosion or Rust: Check metal surfaces for rust or corrosion, especially if the furnace is installed in a humid environment. Corrosion can weaken the valve structure and cause malfunction.
Debris Buildup: Inspect for dirt, dust, or grease accumulation that might block valve components or electrical contacts. Cleaning may be needed if debris is present.
Electrical Terminals: Examine the wiring connections and terminals for discoloration, signs of burning, or loose fittings. Burn marks or melted insulation indicate electrical issues that can impair valve operation or safety.
If any physical damage or significant corrosion is found, it usually means the valve should be replaced rather than repaired.
Next, you need to assess the valve’s electrical functionality, which governs the opening and closing mechanism via the solenoid coil. This requires a multimeter and careful measurement:
Voltage Test:
Set your multimeter to the appropriate AC or DC voltage range as specified in your furnace’s manual.
With the furnace powered on and the thermostat set to call for heat, place the multimeter probes on the gas valve’s electrical terminals.
The control board should send voltage (commonly 24V AC for residential furnaces) to energize the solenoid coil, causing the valve to open.
If no voltage is present or the voltage is significantly lower or higher than the specified range, the issue may be with the control board, wiring, or thermostat rather than the valve itself.
Continuity Test:
Turn off the furnace power completely before disconnecting any wires.
Switch the multimeter to continuity or resistance (ohms) mode.
Place the probes on the two terminals of the gas valve solenoid coil.
A good solenoid coil will show a measurable resistance value indicating continuity (typically between 500 to 1500 ohms, depending on the model).
If the multimeter shows infinite resistance or no continuity, the solenoid coil is burned out or damaged and the gas valve needs replacement.
Proper electrical operation is crucial because without voltage to the solenoid coil, the valve will not open, and your furnace will fail to ignite.
Once the electrical checks are satisfactory, the final critical test is to measure the gas pressure to ensure the valve is allowing the correct flow of fuel:
Equipment Needed: You will require a manometer (gas pressure gauge) designed for furnace testing, which can measure inlet and outlet pressures accurately.
Locate Test Port: Most gas valves have a dedicated test port covered by a screw or cap. Remove this to connect the manometer.
Measure Inlet Pressure:
Connect the manometer to the inlet side of the valve (where gas enters).
The inlet pressure should match the supply pressure from your gas source, typically around 5 to 7 inches of water column (depending on your local gas supply and furnace specifications).
Measure Outlet Pressure:
Connect the manometer to the outlet side (downstream) of the valve.
Turn the furnace on and let it call for heat. The outlet pressure should match the furnace manufacturer’s recommended operating pressure, usually lower than the inlet pressure.
Interpretation:
If the outlet pressure is too low or zero, it may indicate the valve is partially or fully stuck closed or obstructed internally.
If the outlet pressure is too high, it might signal valve malfunction or incorrect regulator settings.
Comparing both readings to the furnace’s official specifications will guide whether the valve is functioning properly or needs replacement.
Important Note: Gas pressure testing should be done cautiously to avoid leaks or damage. If you are unfamiliar with pressure testing, it’s advisable to contact a qualified HVAC professional.
After testing, compare your readings to the specifications listed in your furnace’s service manual.
Pass – Voltage, continuity, and gas pressure match manufacturer guidelines.
Fail – Any reading outside the acceptable range or visible damage indicates the gas valve should be repaired or replaced.
It’s important to note that while minor issues like loose wiring can be fixed, internal gas valve defects generally require replacement due to safety concerns.
A properly functioning gas valve is the heart of a safe and efficient furnace system. Regular testing and prompt troubleshooting can help prevent costly breakdowns and extend the life of your heating equipment. Whether you are a homeowner doing preventive maintenance or a technician diagnosing a heating problem, understanding how to test a gas valve on a furnace is an invaluable skill.

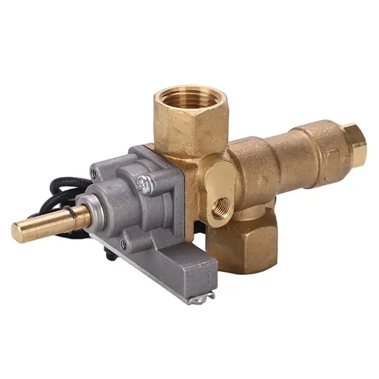

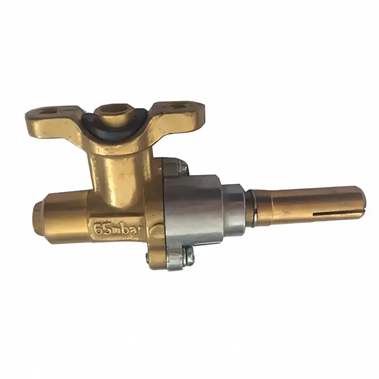

For long-lasting performance and uncompromising safety, Ningbo Yinzhou Yuanming Hardware Co., Ltd. offers a full range of high-quality, CSA-certified gas valves designed for residential, commercial, and industrial applications. Manufactured with precision engineering and rigorous quality control, Yuanming gas valves deliver consistent fuel regulation, enhanced safety features, and compatibility with multiple furnace models.
By combining the right maintenance knowledge with reliable components, you can ensure that your furnace operates at peak efficiency—keeping your home warm, safe, and energy-efficient all winter long.
