A gas valve is a crucial component in any system that uses pressurized gas for fuel delivery, such as residential furnaces, industrial boilers, or cooking appliances. Its primary role is to control the flow and pressure of gas from the supply line to the burner or appliance, ensuring safe and efficient operation. Without a properly functioning gas valve, gas delivery could be inconsistent or unsafe, leading to inefficiencies or even dangerous leaks.
In fuel delivery systems, the gas valve acts as the gatekeeper of fuel supply, opening to allow gas flow only when required and shutting off when fuel is not needed. This precise control is vital for regulating combustion, maintaining desired temperatures, and preventing gas wastage or accidents.
Modern gas valves are engineered to integrate with control systems, responding to thermostat signals or automated processes. They often include safety features to stop gas flow instantly in hazardous situations, underscoring their importance in fuel delivery.
The operation of a gas valve is centered on the regulation of two key parameters: pressure and flow rate. Gas supplied from the main utility typically arrives at a higher pressure than what burners or appliances need for safe combustion. The gas valve steps down this pressure to an appropriate level while also controlling the volume of gas delivered.
When a heating system calls for fuel—signaled by a thermostat or control system—the gas valve opens to allow gas to flow. This opening is controlled precisely, so the right amount of gas reaches the burner. Once the desired temperature is attained, the valve closes to halt gas supply, preventing waste and enhancing safety.
Pressure regulation inside the valve is achieved through internal components such as diaphragms, springs, and regulators that balance upstream supply pressure against downstream demand. This ensures a consistent outlet pressure, which is vital for maintaining a steady flame and avoiding fluctuations that could damage the system.
Simultaneously, the gas valve modulates flow rate by adjusting the valve opening. Maintaining an optimal air-to-fuel ratio is essential for clean, efficient combustion. If too much gas flows, incomplete combustion can produce soot and dangerous carbon monoxide. If too little gas flows, the flame can flicker or extinguish.
Modern gas valves often feature solenoid coils—electromagnetic devices that open or close the valve in response to electrical signals. This enables automated, rapid, and reliable control aligned with the system’s heating demand.
Together, controlling pressure and flow rate allows the gas valve to deliver fuel efficiently, safely, and responsively, adapting dynamically to changing conditions.

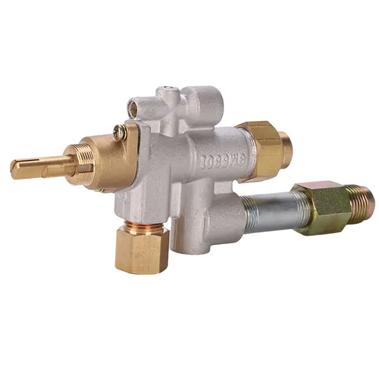

A gas valve’s precise operation relies on several essential components working in harmony:
Inlet and Outlet Ports: These are the valve’s entry and exit points for gas. The inlet port connects to the high-pressure supply line, while the outlet port delivers regulated gas to the burner or appliance. The valve must ensure a tight seal to prevent leaks while allowing controlled flow between these ports.
Control Knob: Many gas valves include a manual control knob that allows users or technicians to open, close, or set the valve to a pilot position. This manual override is critical during installation, maintenance, or emergencies, giving users direct control over gas flow.
Solenoid: The solenoid is an electromagnetic actuator inside the valve. When energized by electrical current, it creates a magnetic field that pulls a plunger, opening the valve to allow gas flow. When power is cut, a spring returns the plunger to close the valve, stopping gas flow. This solenoid mechanism enables rapid and automatic valve operation in response to control signals.
Diaphragm: Located inside the valve body, the diaphragm is a flexible membrane that responds to pressure changes. It separates the high-pressure and low-pressure sides of the valve and moves to regulate gas flow smoothly. The diaphragm’s ability to flex and seal ensures consistent pressure regulation and prevents gas leaks.
These components combine mechanical and electrical functions to enable the valve’s safe and reliable operation. The inlet/outlet ports manage gas entry and exit; the control knob provides manual override; the solenoid allows automated opening/closing; and the diaphragm maintains pressure balance.
Gas valves can be classified into two main types based on their operation mode: manual and automatic.
Manual Gas Valves require a user or technician to physically turn a knob or lever to open or close the valve. This type of valve is common in residential appliances like stoves or simple heating units. Manual valves provide straightforward control and are useful for emergency shutoffs or during maintenance. However, they require human intervention and cannot respond dynamically to changing heating demands.
Automatic Gas Valves operate electrically or pneumatically, responding to signals from thermostats, control boards, or safety sensors. The solenoid coil inside these valves receives current to open or close the valve automatically, allowing precise, on-demand gas flow control without user input. Automatic valves are essential in modern furnaces, boilers, and industrial heating systems where fuel supply must adapt continuously to temperature changes and safety conditions.
While manual valves offer simplicity and direct control, automatic valves provide convenience, energy efficiency, and enhanced safety through rapid and accurate operation. Many systems combine both types—using manual valves as emergency shutoffs alongside automatic valves for daily operation.
Safety is the foremost concern in any gas-based system, and gas valves incorporate multiple features designed to minimize risk:
Fail-Safe Shut-off: Automatic gas valves are designed to close instantly if power is lost or if control signals indicate unsafe conditions. This rapid shutoff prevents gas leaks and potential explosions.
Redundant Shut-off Valves: Some systems use a secondary gas valve downstream as a backup, ensuring that if one valve fails to close, the other can stop gas flow.
Pressure Regulation and Relief: Built-in regulators prevent excess pressure buildup, which could damage appliances or cause leaks.
Manual Shut-off Control: The manual control knob or external emergency valves provide immediate gas isolation during emergencies or repairs.
Thermocouple and Flame Sensor Integration: Many valves integrate with sensors that detect flame presence. If the flame extinguishes unexpectedly, the valve automatically closes to prevent unburned gas release.
These safety functions work together to protect users and property by preventing accidental gas release and ensuring the gas flow is tightly controlled.
Gas valves are used across a wide spectrum of applications that rely on controlled fuel delivery:
Furnaces: In residential and commercial heating systems, gas valves regulate the fuel supply needed to generate heat efficiently and safely, responding to thermostat demands.
Boilers: Industrial and home boilers require precise gas flow regulation to produce steam or hot water, with valves maintaining stable pressure and flow for consistent operation.
Cooking Stoves and Ovens: Gas valves in kitchen appliances allow users to control flame size and temperature, enabling precise cooking.
Industrial Burners: Heavy-duty burners in manufacturing plants, power generation, and processing facilities use robust gas valves designed for high pressures, rapid cycling, and harsh environments.
Each application demands gas valves tailored to specific pressure ranges, flow capacities, and control requirements, illustrating the versatility and critical importance of gas valves.
A gas valve is more than just a simple switch; it is a precision-engineered device that ensures safe, efficient, and responsive fuel delivery across a variety of applications. By controlling gas pressure and flow rate, integrating safety features, and adapting to both manual and automatic operation, gas valves play an indispensable role in modern heating and fuel systems.
For reliable performance and peace of mind, choosing quality gas valves is essential. Ningbo Yinzhou Yuanming Hardware Co., Ltd. specializes in manufacturing CSA-certified gas valves engineered for durability, safety, and precision. Their products serve residential, commercial, and industrial markets with consistent quality and innovation.
Investing in a high-quality gas valve from Yuanming guarantees efficient fuel control and system safety, keeping your operations running smoothly and securely.
