Have you ever wondered how temperature is measured in extreme environments? Thermocouples are the solution. These temperature sensors are capable of converting thermal energy into electrical signals, making them essential in a wide variety of industries.
In this article, we will explore what a thermocouple is, how it works, and its critical applications. You’ll learn how thermocouples measure temperature with accuracy and why they’re so widely used in industrial and scientific settings.

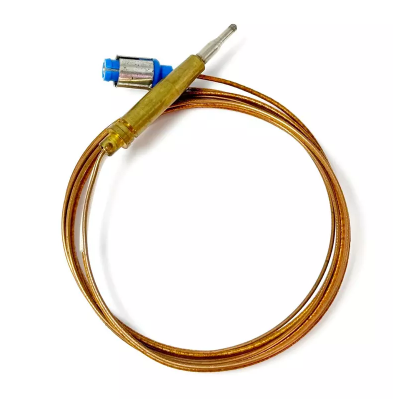

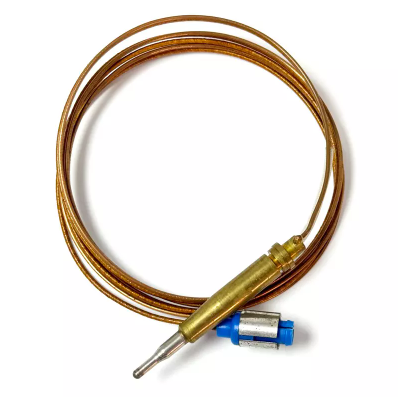

A thermocouple is a temperature sensor that measures temperature by converting thermal energy into electrical energy. It consists of two dissimilar metal wires joined at one end, forming a junction that reacts to temperature differences. When this junction is exposed to heat, a small voltage is generated, which can then be measured to determine the temperature at the junction. This basic principle, known as the Seebeck effect, makes thermocouples invaluable in a wide range of applications.Thermocouples are particularly valuable because they are simple, robust, and capable of withstanding extreme environmental conditions, including high temperatures, vibrations, and pressure. Whether it's in industrial machinery, scientific research, or even household appliances, thermocouples are relied upon for accurate and real-time temperature measurements in environments where other sensors might fail.
Thermocouples are essential for temperature regulation across a variety of industries, including manufacturing, automotive, HVAC, and healthcare. They play a critical role in ensuring that processes operate within safe and efficient temperature ranges. From controlling furnace temperatures in industrial settings to monitoring the warmth in incubators for medical purposes, thermocouples provide reliable data that keeps systems functioning optimally.Their broad temperature range, quick response time, and ability to perform accurately under harsh conditions make them indispensable for industries where precision temperature control is paramount. The combination of affordability and high durability ensures that thermocouples remain a popular choice for both industrial and scientific applications.
The Seebeck effect, named after Thomas Seebeck, is the key principle behind the operation of thermocouples. This phenomenon occurs when two different metals are connected at one end and subjected to a temperature difference. The heat at the junction causes electrons to move, generating a small voltage, which is proportional to the temperature difference between the two junctions. In simple terms, the Seebeck effect allows thermocouples to convert thermal energy into electrical energy. The greater the temperature difference between the hot and cold junctions, the greater the voltage produced, enabling accurate temperature measurement. This principle has been the foundation of thermocouples for over a century, and it continues to be widely used today due to its simplicity and effectiveness.
The voltage generated by the thermocouple is directly related to the temperature difference between the hot and cold junctions. The voltage signal is then measured by a voltmeter or a specialized instrument capable of converting the voltage into a readable temperature value. While thermocouples do not measure the absolute temperature of the hot junction directly, they measure the differential temperature (the difference between the hot and cold junctions). The voltage generated is then converted into an actual temperature reading using well-established calibration standards, making thermocouples versatile and reliable for a wide range of applications.
Cold junction compensation (CJC) is an essential process for thermocouple accuracy. Since thermocouples measure the temperature difference between the hot and cold junctions, fluctuations in the temperature at the cold junction (where the thermocouple connects to the measuring instrument) can affect the overall measurement. To counter this, cold junction compensation measures the temperature at the cold junction and adjusts the voltage reading accordingly, ensuring that any variations in the ambient temperature do not lead to inaccurate results. This feature is especially important in industrial and scientific applications where temperature precision is critical. CJC ensures that thermocouples provide accurate readings, even in fluctuating environmental conditions.
The hot junction is the most critical part of a thermocouple, as it is the point where the two metal wires are joined and exposed to the temperature source. The temperature at this junction directly influences the voltage generated by the thermocouple. The hot junction is typically placed in direct contact with the substance or environment whose temperature is being measured.When heat is applied to the hot junction, the two dissimilar metals generate a voltage due to the Seebeck effect. This voltage is then used to calculate the temperature at the hot junction. The accuracy of the measurement depends on the condition and location of the hot junction, making it essential to ensure proper placement and maintenance.
The cold junction serves as the reference point for the thermocouple and connects the thermocouple wires to the measuring instrument. It is typically not exposed to the temperature being measured and, therefore, remains at a constant ambient temperature.The cold junction's temperature is crucial for accurate thermocouple readings. Variations in the temperature at the cold junction can cause errors in the temperature measurement, which is why cold junction compensation is used to adjust for any fluctuations in the cold junction's temperature. In modern thermocouple systems, CJC is automatically accounted for to provide accurate and reliable temperature readings.
The performance of a thermocouple depends on the metal pair used in its construction. Each pair of metals has different thermoelectric properties, meaning they generate different voltage signals when exposed to heat. Some common thermocouple types include:
● Type K (Chromel/Alumel): Known for its broad temperature range and versatility, used in many industrial applications.
● Type J (Iron/Constantan): Used for lower temperature measurements, often in laboratory settings.
● Type T (Copper/Constantan): Ideal for very low-temperature applications, such as cryogenics.
The choice of metal pair affects not only the temperature range but also the accuracy of the thermocouple. Some metal pairs offer better sensitivity, while others are more durable in extreme environments. Understanding the metal pairing and selecting the appropriate type for the application is crucial for ensuring precise temperature measurements.
Component | Description | Function |
Hot Junction | The point where the two metal wires are joined | Exposed to temperature, generates voltage |
Cold Junction | The reference point connecting the thermocouple to the measuring instrument | Serves as the reference for the temperature measurement |
Metal Pairings | Various combinations of metals (e.g., Chromel, Alumel) | Determines the temperature range and sensitivity of the thermocouple |
Thermocouples come in a variety of types, each suited to specific temperature ranges and applications. The most common types include:
● Type K: Widely used across a wide temperature range from -40°C to 1,260°C, making it ideal for industrial applications, including furnace and kiln monitoring.
● Type J: Typically used for lower temperatures, such as in cryogenic experiments, with a range of -40°C to 750°C.
● Type T: Best suited for very low temperatures, such as in scientific research, with a range of -200°C to 350°C.
Choosing the right thermocouple type is essential for accurate temperature measurements in any given application, from manufacturing processes to scientific experiments.
Thermocouple Type | Temperature Range | Common Applications |
Type K | -40°C to 1,260°C | Industrial furnaces, kilns, general-purpose use |
Type J | -40°C to 750°C | Low-temperature applications, cryogenics, laboratories |
Type T | -200°C to 350°C | Scientific research, cryogenics, laboratory environments |
Thermocouples are widely used in industries such as:
● Manufacturing: Thermocouples help monitor the temperature in furnaces, kilns, and other industrial equipment where precise temperature control is essential for quality and safety.
● Automotive: In automotive manufacturing, thermocouples are used to monitor engine temperatures, exhaust systems, and other critical components.
● HVAC Systems: Thermocouples play a vital role in controlling the temperature in heating, ventilation, and air conditioning systems, ensuring energy efficiency and safety.
Thermocouples are chosen for their ability to operate in harsh conditions, their speed in responding to temperature changes, and their versatility in various industrial settings.
Thermocouples are also critical in scientific research and medical applications:
● Scientific Research: In laboratories, thermocouples help maintain precise temperature control in experiments, ensuring that the results are accurate and reproducible.
● Medical Equipment: In medical devices such as incubators, thermocouples help maintain the correct temperature for patient care, ensuring the safety and well-being of patients.
The reliability and accuracy of thermocouples make them indispensable in these sensitive fields, where even slight temperature deviations can have significant consequences.
In industrial settings, thermocouples help maintain temperature control in critical processes. For example, in furnaces, thermocouples monitor the internal temperature to ensure that materials are heated to the desired level. Maintaining a consistent temperature is crucial for the quality of the end product, whether it's steel, glass, or ceramics.Thermocouples also play a key role in controlling reactor temperatures in chemical plants, ensuring that processes remain within the optimal range for efficiency and safety.
Thermocouples provide real-time monitoring, which is vital for maintaining safety in hazardous environments. In systems like furnaces, boilers, and gas-powered machinery, thermocouples can detect any irregularities, such as the pilot light going out, and automatically shut off the gas supply to prevent accidents, like gas leaks or explosions.In environments where temperature fluctuations could lead to dangerous situations, thermocouples act as a first line of defense, ensuring that processes remain safe and under control.
In scientific experiments, maintaining precise temperature conditions is essential for accurate results. Thermocouples help scientists measure and control temperatures to ensure that experiments yield reliable data. For example, in cryogenic research, where temperatures are extremely low, thermocouples provide the accuracy needed to maintain a stable environment for experimentation.
To test a thermocouple, you’ll need a digital multimeter capable of measuring small voltages (millivolts). This tool will help you determine if the thermocouple is functioning correctly and generating the expected voltage when exposed to heat.
1. Set the multimeter to measure millivolts.
2. Attach the multimeter leads to the thermocouple’s terminals.
3. Heat the thermocouple’s junction and observe the voltage reading. The voltage should increase as the temperature rises. If the thermocouple is not producing the expected voltage, it may need to be replaced.
If the thermocouple fails to produce the expected voltage or is not responding to temperature changes, it may be damaged or malfunctioning. Check for any physical damage or poor connections that could be causing the issue. In some cases, replacing the thermocouple may be necessary.
To maintain the thermocouple’s performance:
● Use a soft brush or compressed air to gently remove dust, soot, or debris from the thermocouple.
● Avoid abrasive materials that could scratch or damage the metal wires or junction.
● Regularly inspect the thermocouple for corrosion or oxidation, which could interfere with its function.
● Keep the thermocouple clean to prevent buildup that could impact its accuracy and response time.
Routine maintenance, including regular cleaning and inspections, helps extend the life of the thermocouple and ensures that it continues to provide accurate temperature measurements.
Thermocouples are versatile and reliable temperature sensors that convert temperature differences into electrical signals. Their wide temperature range, fast response time, and robustness make them essential for various industries and scientific applications.When selecting a thermocouple, choosing the right type and ensuring proper maintenance are crucial for optimal performance. Regular inspections and cleaning will ensure that thermocouples remain accurate, providing safe and efficient temperature measurements.
Thermocouples from Ningbo Yinzhou Yuanming Hardware Co., Ltd. offer great value. Their durability and reliability make them ideal for industrial and scientific use. The company ensures top-quality products, designed to deliver precise and long-lasting temperature measurement solutions.
A: A thermocouple is a temperature sensor that converts temperature differences into electrical voltage. This voltage is then measured to determine the temperature at the junction of two dissimilar metals.
A: Thermocouples are used in industrial settings, scientific research, and medical devices to measure and regulate temperature, offering quick response times and broad temperature ranges.
A: Cold junction compensation adjusts for temperature variations at the cold junction, ensuring accurate temperature readings, especially in fluctuating ambient temperatures.
A: To test a thermocouple, use a multimeter to measure the voltage it generates when exposed to heat. If the voltage is within expected ranges, the thermocouple is functioning properly.
A: Thermocouples offer wide temperature ranges, durability in harsh conditions, and fast response times, making them ideal for extreme environments where other sensors may fail.
