Have you ever experienced a furnace that won’t stay lit or a water heater that refuses to heat? It could be due to a faulty thermocouple. Thermocouples are vital sensors found in various systems like furnaces, water heaters, and industrial kilns. They detect temperature changes and generate a small voltage, which is used to control the system’s temperature.
In this article, we will discuss why thermocouples fail and how you can replace a faulty one with ease. With the right tools and guidance, replacing a thermocouple is manageable for homeowners, ensuring your equipment continues to run smoothly.

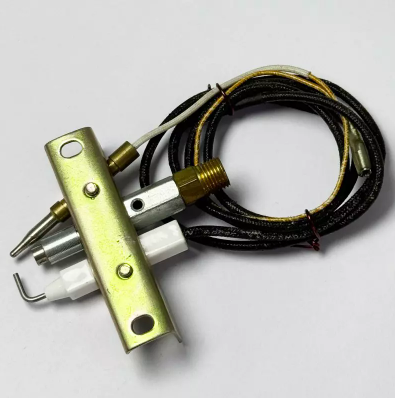

A thermocouple is a simple yet highly effective temperature sensor that consists of two dissimilar metal wires joined together at one end, forming what is called the hot junction. When the hot junction is exposed to a temperature gradient, it generates a small voltage due to the Seebeck effect, where the metals react differently to temperature changes. This voltage is proportional to the temperature difference and can be measured to determine the temperature at the hot junction.
The principle behind thermocouples is relatively straightforward, but their versatility makes them valuable across many applications. They are particularly useful in environments where temperatures fluctuate widely or where high temperatures need to be measured, such as in furnaces, industrial machines, and even scientific experiments.Thermocouples are used in many systems because they are relatively inexpensive, durable, and capable of measuring a wide range of temperatures. However, due to wear and tear, they can lose their effectiveness over time, and when this happens, they need to be replaced.
A thermocouple that isn’t working correctly can cause several issues, leading to potential system failures. Common signs that indicate a faulty thermocouple include:
● Furnace or heater not staying lit: If your furnace’s pilot light won’t stay on or your water heater isn’t igniting, it could be due to a thermocouple failure, as it’s responsible for signaling when gas should flow to the burner.
● Inaccurate temperature readings: If your appliance or system is giving false temperature readings, this can often be traced back to a malfunctioning thermocouple that fails to generate an accurate voltage.
● Burner not igniting: If the burner refuses to light even when the thermostat is calling for heat, the thermocouple might not be functioning properly and failing to signal the system to open the gas valve.
A faulty thermocouple can lead to higher energy bills, inefficient performance, and, in some cases, a system breakdown, which is why replacing it promptly is essential.
Before replacing a thermocouple, ensure that you have the following tools and materials at hand:
● Wrench: For loosening and removing the thermocouple connections from the gas valve and other components.
● Screwdriver: Used to remove any panels or covers obstructing access to the thermocouple.
● Multimeter: For testing the new thermocouple to ensure it is functioning properly once installed.
● Safety gloves and glasses: To protect yourself from potential hazards during the replacement process, especially when dealing with gas components.
● Replacement thermocouple: Be sure to select a thermocouple that matches the type and size of the one being replaced.
Tool/Material | Purpose |
Wrench | For loosening and removing thermocouple connections |
Screwdriver | For removing any covers or panels obstructing access |
Multimeter | To test the new thermocouple for functionality |
Safety Gloves & Glasses | To protect from potential hazards, especially with gas components |
Replacement Thermocouple | For replacing the faulty thermocouple with a compatible one |
Thermocouples are available in various types, each suited for different temperature ranges and applications. Common types include:
● Type K (Chromel-Alumel): One of the most commonly used thermocouples, it offers a broad temperature range and is typically used for general-purpose applications.
● Type S (Platinum-Rhodium): This type is used for high-precision applications, especially where temperatures exceed those measurable by Type K thermocouples. Type S is used in kilns and high-temperature ovens.
Before purchasing a new thermocouple, consult your system’s manual or inspect the old thermocouple to ensure compatibility. You’ll need to match the type, size, and temperature range of the replacement thermocouple with your specific requirements.
The first and most important step in replacing a thermocouple is to ensure that your system is completely turned off. This includes:
● Shutting off the power: If the system is electrical, turn off the power supply to avoid any risk of electrical shock.
● Turning off the gas: For systems that use gas, ensure that the gas supply is turned off to prevent leaks and the potential risk of a fire or explosion.
Make sure that the system has had time to cool down before proceeding. It's always best to wait at least 30 minutes to ensure that there are no lingering heat sources.
Once you’ve turned off the power and gas:
● Locate the thermocouple: The thermocouple is usually located near the burner or pilot light. You may need to remove a panel or cover to access it.
● Disconnect the wires: Use your wrench to loosen and disconnect the nut holding the thermocouple to the gas valve or control system. Take note of how the wires are connected before removing them.
● Remove any mounting hardware: If the thermocouple is secured with brackets or clips, carefully remove them to free the thermocouple from its housing.
Now that the old thermocouple has been removed, it’s time to install the new one:
● Position the new thermocouple: Place the new thermocouple in the same position as the old one, ensuring that the hot junction (exposed to the heat source) is correctly placed near the burner or pilot light.
● Ensure proper alignment: Double-check that the thermocouple is aligned properly to avoid incorrect readings or poor performance.
Once the thermocouple is in place:
● Reconnect the wires: Attach the wires to the appropriate terminals, ensuring a secure connection. The wires should be tightly fastened but not over-tightened, as this could cause damage to the connections.
● Secure the thermocouple: Use the appropriate mounting hardware to secure the thermocouple in place, making sure it is positioned correctly for optimal performance.
After installation, it’s crucial to test the new thermocouple to ensure it is functioning properly:
● Use a multimeter: Set your multimeter to measure millivolts. Heat the thermocouple by igniting the pilot light or using a small flame. The thermocouple should generate a voltage (usually between 25 to 30 millivolts).
● Check the readings: If the multimeter shows a consistent reading within the normal range, the thermocouple is working properly. If it doesn’t, check the wiring and positioning again, or consider replacing the thermocouple.
● Incorrect wire connections: One of the most common issues is improperly connecting the thermocouple wires. Be sure to follow the original wire configuration or refer to the system’s manual.
● Improper installation: Ensure the thermocouple is seated correctly in its mounting. If the junction is not exposed to the heat source properly, it may not generate the correct voltage.
If you continue to encounter issues, double-check your installation and make sure the thermocouple type and size match the system’s requirements.
Problem | Solution |
Thermocouple not generating voltage | Ensure the thermocouple is properly positioned and connected to the system. Test the voltage with a multimeter. |
Wires not connecting properly | Double-check the wire connections and ensure they are secured tightly without over-tightening. |
Pilot light won’t stay on | Check the thermocouple for corrosion or damage. Replace if needed and ensure the gas supply is properly cut off. |
Error codes from the system | Confirm that the thermocouple type matches the system's requirements. If the system continues to show errors, consult a professional. |
A thermocouple needs to be kept clean for accurate temperature measurements. Regularly remove any debris or soot that may accumulate on the thermocouple using a soft brush or compressed air. Cleaning it once every few months will help maintain its performance and prevent buildup.
● Test periodically: Even if your thermocouple seems to be working fine, periodic testing ensures it’s still accurate.
● Replace when necessary: If the thermocouple shows signs of degradation, such as corrosion, cracks, or bent components, replace it immediately to prevent further issues.
Maintenance Activity | Recommended Frequency | Purpose |
Clean thermocouple | Every 3-6 months | Remove dust, soot, or debris to ensure accuracy. |
Test functionality | Every 6 months or if malfunctioning | Check for voltage generation using a multimeter. |
Inspect for physical damage | Annually | Look for cracks, corrosion, or wear and tear. |
Replace thermocouple | Every 2-5 years (depending on usage) | Ensure optimal performance and prevent system failures. |
Replacing a faulty thermocouple is a key maintenance task to keep your system running efficiently. By following this guide, you can easily replace the thermocouple and ensure proper functioning. Regular cleaning and periodic checks can extend its lifespan and avoid future issues.
For high-quality thermocouples and hardware solutions, Ningbo Yinzhou Yuanming Hardware Co., Ltd. offers products that are reliable and designed to meet various industrial needs. Their thermocouples are engineered to provide accurate and durable performance, ensuring optimal results for your systems.
A: A thermocouple is a temperature sensor made of two different metals joined together. It detects temperature changes by generating a small voltage, which is used in various systems like furnaces and water heaters.
A: If your furnace or water heater isn’t staying lit, or if you're getting inaccurate temperature readings, your thermocouple may need replacing.
A: Yes, replacing a thermocouple is a manageable task with basic tools. Ensure the system is turned off, then follow the proper steps for installation and testing.
A: Depending on usage, a thermocouple should be replaced every 2-5 years or when signs of malfunction appear, such as corrosion or inconsistent temperature readings.
A: You’ll need a wrench, screwdriver, multimeter, safety gloves, and a replacement thermocouple to replace it safely and effectively.
