Are you aware of how long a thermocouple can last in industrial applications? A thermocouple is a crucial device that helps measure temperature changes and ensure the smooth operation of various processes.
In this article, we will discuss the factors that influence the lifespan of thermocouples and why it’s essential to maintain them regularly. You’ll learn how to extend their operational life and avoid costly failures.

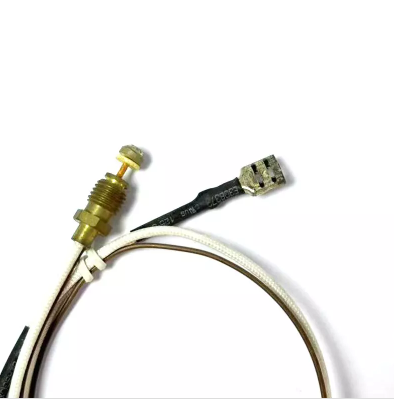

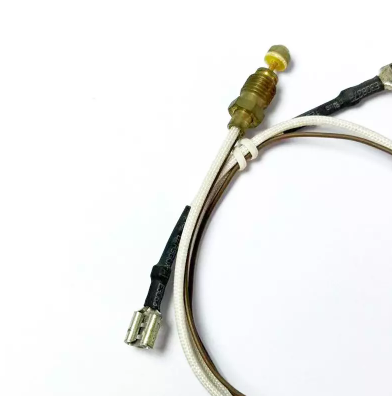

A thermocouple is a temperature measurement device made of two dissimilar metal wires joined at one end. When this junction experiences a temperature change, it generates a small electrical voltage that can be measured and correlated to the temperature at the junction. Thermocouples are widely used across various industries due to their robustness, wide temperature range, and fast response times. These devices are invaluable in situations where reliable temperature data is essential. For example, in industrial processes, scientific research, and even in everyday household appliances like ovens and water heaters. By measuring temperature differences between two junctions, thermocouples allow us to monitor conditions effectively, ensuring the smooth operation of equipment and preventing potential risks.But like all components, thermocouples have a lifespan that’s influenced by numerous factors. Understanding how long they last and when they need to be replaced is crucial for maintaining safety, performance, and operational efficiency.
Understanding the lifespan of a thermocouple is vital for ensuring the accuracy of temperature readings and preventing system failures. Over time, a thermocouple’s performance can degrade due to wear, environmental factors, and frequent use. By recognizing the signs of a failing thermocouple early, industries can avoid unnecessary downtime, maintain operational efficiency, and reduce repair costs. Regular testing and maintenance of thermocouples can help extend their lifespan and prevent temperature reading errors, which can be costly and potentially dangerous. A thermocouple that is not functioning properly can lead to inaccurate readings, which may affect the entire system’s performance. This can be particularly problematic in high-stakes environments like manufacturing plants, research laboratories, or safety-critical applications where temperature control is vital for operations.
The lifespan of a thermocouple is largely influenced by the materials used in its construction. Thermocouples come in various types, with different metal combinations, each offering varying degrees of durability. For example:
● Base Metal Thermocouples (e.g., Type K, J, T): These are made from materials like copper, iron, and nickel. They tend to be cost-effective but may have a shorter lifespan in extreme conditions. Base metal thermocouples are popular for general-purpose applications and are often used in environments with moderate temperatures.
● Noble Metal Thermocouples (e.g., Type R, S, B): These thermocouples are made from precious metals like platinum and rhodium, which provide longer service lives and higher temperature resistance. However, they are significantly more expensive. Noble metal thermocouples are ideal for high-temperature applications where durability and accuracy are required over an extended period.
The choice of material impacts both the lifespan and the accuracy of the thermocouple. Noble metals generally offer a longer lifespan in extreme conditions, making them suitable for applications in industries such as metallurgy, aerospace, and research.
Thermocouples are sensitive to the environments in which they operate. Factors like temperature extremes, pressure, and chemical exposure can all accelerate the aging process. For example:
● High temperatures can cause the metal wires to degrade, particularly in the case of base metal thermocouples. This degradation can significantly reduce their operational life if they’re exposed to temperatures near or above their maximum rated range.
● Corrosive chemicals can cause oxidation or wear, affecting the thermoelectric properties of the metals. In industries where harsh chemicals are present, thermocouples may need additional protection, such as protective coatings or enclosures.
● Vibration and mechanical stress can damage the delicate wires and junctions, reducing the lifespan.
Maintaining optimal environmental conditions for thermocouples is key to extending their operational life. Protective sheaths or enclosures can help shield the thermocouple from chemical exposure, physical damage, and excessive heat.
Thermocouples experience wear as they are used to monitor temperature fluctuations. Thermal cycling, or the repeated expansion and contraction of the materials with each heating and cooling cycle, can stress the junction and lead to a decline in performance. The more frequent the thermal cycling, the quicker the materials can degrade.
● Frequent thermal cycling can cause fatigue in the materials, leading to a drift in calibration over time. For instance, rapid heating and cooling of thermocouples in high-temperature furnaces can cause changes in the metal's structure, reducing its accuracy.
● Long periods of use without proper calibration checks can result in inaccurate readings, signaling the need for replacement.
It is essential to consider the frequency of use when assessing a thermocouple’s lifespan. Industrial applications that require constant temperature monitoring may need more frequent replacement or recalibration of thermocouples.
Proper maintenance plays a critical role in ensuring the longevity of a thermocouple. Regular inspections and cleaning help prevent the buildup of debris and corrosion that can degrade its performance.
● Protective sheaths and insulation can safeguard the thermocouple from harsh conditions and contamination. Ensuring that the thermocouple is housed in an environment that minimizes exposure to corrosive agents or mechanical damage will extend its lifespan.
● Routine calibration checks ensure that the thermocouple is providing accurate readings and isn’t drifting from its original specifications. Performing these checks on a regular basis helps maintain the integrity of the thermocouple over time.
By following recommended maintenance practices, such as cleaning and recalibrating, the lifespan of thermocouples can be significantly extended.
Factor | Description | Impact on Lifespan |
Material | Type of metals used (Base metal vs. Noble metals) | Longer lifespan with noble metals in extreme conditions |
Operating Environment | High temperatures, corrosive chemicals, mechanical stress | Accelerates degradation in harsh environments |
Frequency of Use | Thermal cycling, constant usage | Shortens lifespan with high usage or frequent thermal cycles |
Maintenance | Cleaning, calibration checks, protective measures | Proper maintenance extends lifespan |
Thermocouple Type | Material | Common Uses | Estimated Lifespan |
Base Metal | Copper, Iron, Nickel | General-purpose applications, moderate temperatures | 2 to 5 years |
Noble Metal | Platinum, Rhodium | High-temperature applications, research, aerospace | 5 to 10+ years |
High-Temperature | Various alloys | Furnaces, kilns, reactors | 2 to 3 years |
Base metal thermocouples, such as Type K (Chromel-Alumel) and Type J (Iron-Constantan), are widely used in general-purpose applications due to their cost-effectiveness. These thermocouples generally last 2 to 5 years in standard conditions.
● Type K: Commonly used in industrial applications, it has a lifespan of about 2 to 5 years under normal usage. However, in extreme temperature conditions, it may degrade faster.
● Type J: Also used in lower-temperature applications, but with a lifespan similar to Type K in typical environments.
While cost-effective, these thermocouples may not perform as well in extreme conditions, leading to faster degradation. Their relatively shorter lifespan in harsh environments can be mitigated with the use of protective coatings or sheaths.
Noble metal thermocouples, such as Types R, S, and B, are designed for high-temperature or highly demanding environments. These thermocouples can last 5 to 10 years or even longer with proper care.
● Type R and S: Made from platinum and rhodium, these thermocouples are used in high-temperature furnaces or scientific research, offering excellent stability at temperatures up to 1600°C (2912°F).
● Type B: Suitable for extreme heat applications, Type B thermocouples can withstand temperatures up to 1700°C (3092°F), offering a long lifespan when maintained properly.
These thermocouples, while more expensive, provide greater reliability and accuracy in extreme environments, making them ideal for industries like metallurgy, aerospace, and chemical processing. The higher initial cost is often justified by the extended service life and greater accuracy.
Thermocouples used in extreme environments—such as those in furnaces, kilns, or reactors—require careful selection. These applications may shorten the lifespan of thermocouples, and they often need to be replaced more frequently (every 2 to 3 years) due to the harsh conditions they endure. High temperatures, mechanical stress, and chemical exposure all take a toll on thermocouples in these environments.
Over time, a thermocouple can experience calibration drift, meaning its ability to provide accurate readings diminishes. This drift typically occurs gradually but can be accelerated by harsh conditions or excessive use.
● Regular temperature tests can help detect calibration drift. For example, comparing the thermocouple readings with those from another calibrated device can reveal discrepancies.
● Significant drift often requires recalibration or replacement. In cases where drift exceeds acceptable limits, replacing the thermocouple is often the best option to ensure accurate temperature measurements.
Thermocouples are prone to physical damage, especially if subjected to extreme mechanical stress or exposure to corrosive environments.
● Look for signs of oxidation, corrosion, or cracking at the junction. These physical issues can cause incorrect readings or complete failure.
● Bending or warping of the thermocouple probe is another indicator that it may need replacing. A bent or warped probe may not accurately respond to temperature changes, leading to unreliable readings.
If your thermocouple starts to deliver inconsistent readings, it may be time to replace it. This is particularly common when thermocouples begin to age and experience drift or physical damage.
● If readings vary despite consistent environmental conditions, replacement should be considered. Inconsistent readings can lead to system malfunctions, inaccuracies in temperature control, and even unsafe conditions in industrial settings.
One of the easiest ways to test a thermocouple is by using a digital multimeter. The process involves checking the voltage output generated by the thermocouple when exposed to heat.
1. Set the multimeter to measure millivolts (mV).
2. Connect the multimeter’s leads to the thermocouple.
3. Heat the thermocouple using a flame, and observe the voltage reading.
4. Compare the reading to the expected output for the type of thermocouple being tested (e.g., Type K should produce around 4 mV at 100°C).
If the reading is below 25 mV, the thermocouple is likely failing and should be replaced.
When testing, compare a new thermocouple to the old one in the same environment. Significant differences in output voltage can indicate that the old thermocouple is no longer functioning properly.
Thermocouple issues can often be traced to connection problems, dirt accumulation, or wiring faults. If the thermocouple is working in one part of the system but not another, inspect the wiring and connections for damage or misalignment.
Step | Action | Purpose |
Step 1 | Set multimeter to measure millivolts (mV) | Measure the thermocouple's voltage output |
Step 2 | Connect multimeter leads to the thermocouple | Establish a connection for measurement |
Step 3 | Heat the thermocouple using a flame | Simulate temperature change to test voltage response |
Step 4 | Compare the reading to the expected output | Determine if the thermocouple is working correctly |
Dirt, dust, and chemical buildup can impair a thermocouple’s performance. Regular cleaning is crucial, especially for thermocouples exposed to harsh environments.
● Use a soft brush or compressed air to remove dust.
● Avoid abrasive materials that may damage the thermocouple.
Protective sheaths, thermowells, and insulating materials can help extend the life of thermocouples, particularly in harsh industrial environments. Ensure that your thermocouple is properly shielded from corrosive substances and excessive heat.
Routine calibration checks ensure that your thermocouple provides accurate measurements. These checks should be done regularly, especially in critical applications where precision is required.
The lifespan of a thermocouple depends on various factors, such as material type, operating environment, and usage frequency. Understanding these factors helps in maintaining thermocouples for accurate temperature readings. Regular testing, maintenance, and timely replacement are essential to keep thermocouples in top condition. Whether using base metal thermocouples in standard environments or noble metal ones in extreme conditions, knowing when to replace them can save costs and prevent failures.
For high-quality thermocouples, Ningbo Yinzhou Yuanming Hardware Co., Ltd. provides reliable products designed for various industrial needs, ensuring precision and durability across different applications.
A: A thermocouple's lifespan varies based on material and conditions, typically lasting 2 to 5 years for base metal types and up to 10 years for noble metal types.
A: Factors such as the thermocouple's material, operating environment, usage frequency, and maintenance practices influence its lifespan.
A: Regular calibration checks, proper cleaning, and using protective sheaths can help extend the lifespan of a thermocouple.
A: Thermocouples can fail due to physical damage, oxidation, thermal cycling, and exposure to harsh environments.
A: Use a multimeter to check the voltage output of a thermocouple and compare it with expected values to identify wear or damage.
